产品描述

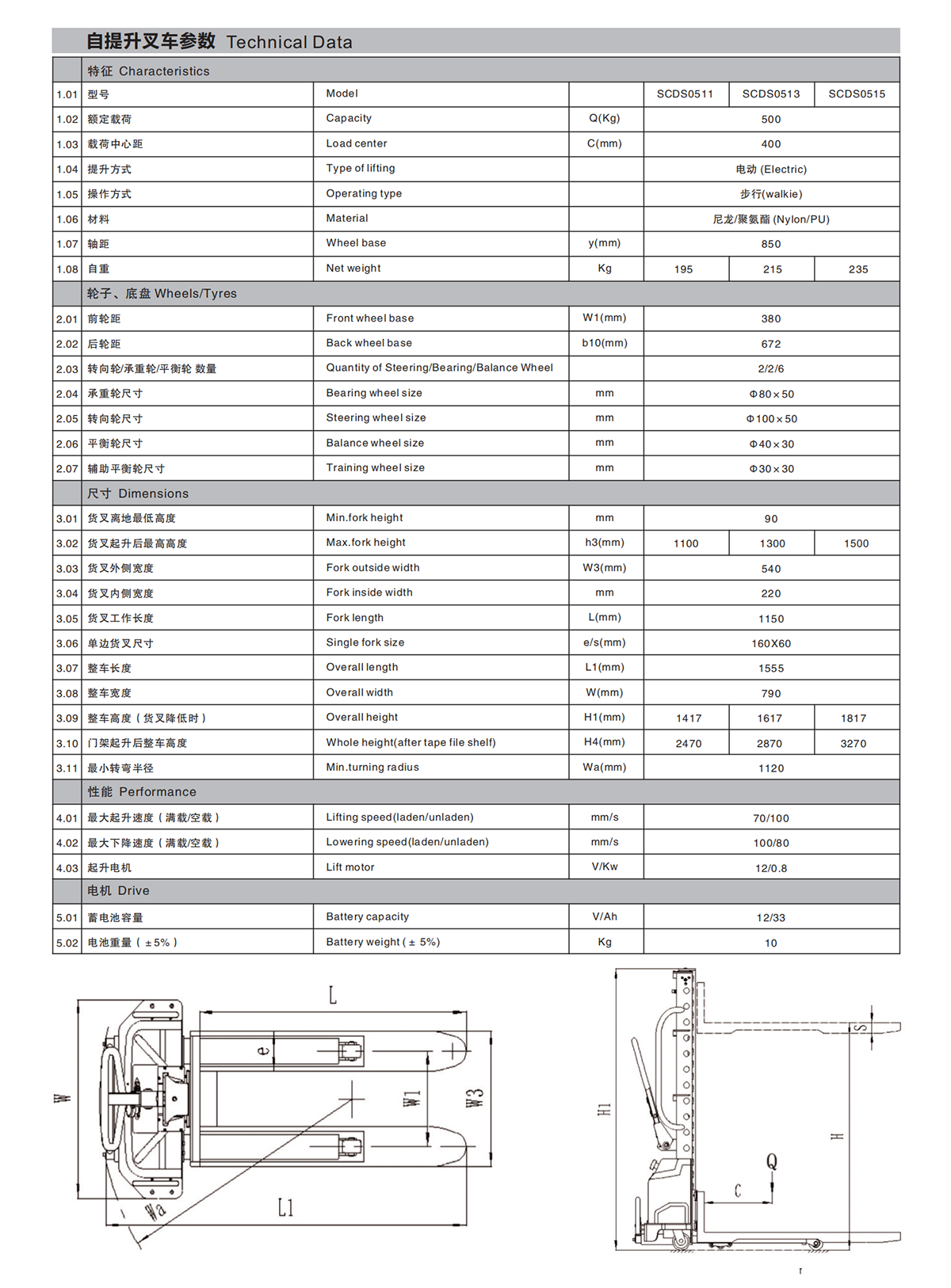

| 自提升叉车参数Technical Data | ||||||
| 特征Characteristics | ||||||
| 1.01 | 型号 | Model | SCDS0511 | SCDS0513 | SCDS0515 | |
| 1.02 | 额定载荷 | Capacity | Q(Kg) | 500 | ||
| 1.03 | 载荷中心距 | Ioad center | C(mm) | 400 | ||
| 1.04 | 提升方式 | Type of lifting | 电动(Electric) | |||
| 1.05 | 操作方式 | Operating type | 步行(walkie) | |||
| 1.06 | 材料 | Material | 尼龙/聚氨酯(Nylon/PU) | |||
| 1.07 | 轴距 | Wheel base | y(mm) | 850 | ||
| 1.08 | 自 重 | Net weight | Kg | 195 | 215 | 235 |
| 轮子、底盘Wheels/Tyres | ||||||
| 2.01 | 前轮距 | Front wheel base | W1(mm) | 380 | ||
| 2.02 | 后轮距 | Back wheel base | b10(mm) | 672 | ||
| 2.03 | 转向轮/承重轮/平衡轮数量 | Quantity of Steering/Bearing/Balance Wheel | 2/2/6 | |||
| 2.04 | 承重轮尺寸 | Bearing wheel size | mm | φ80×50 | ||
| 2.05 | 转向轮尺寸 | Steering wheel size | mm | φ100×50 | ||
| 2.06 | 平衡轮尺寸 | Balance wheel size | mm | φ40×30 | ||
| 2.07 | 辅助平衡轮尺寸 | Training wheel size | mm | φ30×30 | ||
| 尺寸Dimensions | ||||||
| 3.01 | 货叉离地最低高度 | Min.fork height | mm | 90 | ||
| 3.02 | 货叉起升后最高高度 | Max.fork height | h3(mm) | 1100 | 1300 | 1500 |
| 3.03 | 货叉外侧宽度 | Fork outside width | W3(mm) | 540 | ||
| 3.04 | 货叉内侧宽度 | Fork inside width | mm | 220 | ||
| 3.05 | 货叉工作长度 | Fork length | L(mm) | 1150 | ||
| 3.06 | 单边货叉尺寸 | Single fork size | e/s(mm) | 160X60 | ||
| 3.07 | 整车长度 | Overall length | L1(mm) | 1555 | ||
| 3.08 | 整车宽度 | Overall width | W(mm) | 790 | ||
| 3.09 | 整车高度(货叉降低时) | Overall height | H1(mm) | 1417 | 1617 | 1817 |
| 3.1 | 门架起升后整车高度 | Whole height(after tape file shelf) | H4(mm) | 2470 | 2870 | 3270 |
| 3.11 | 最小转弯半径 | Min.turning radius | Wa(mm) | 1120 | ||
| 性能Performance | ||||||
| 4.01 | 最大起升速度(满载/空载) | Lifting speed(laden/unladen) | mm/s | 70/100 | ||
| 4.02 | 最大下降速度(满载/空载) | Lowering speed(laden/unladen) | mm/s | 100/80 | ||
| 4.03 | 起升电机 | Lift motor | V/Kw | 12/0.8 | ||
| 电机Drive | ||||||
| 5.01 | 蓄电池容量 | Battery capacity | V/Ah | 12/33 | ||
| 5.02 | 电池重量(±5%) | Battery weight (±5%) | Kg | 10 | ||
